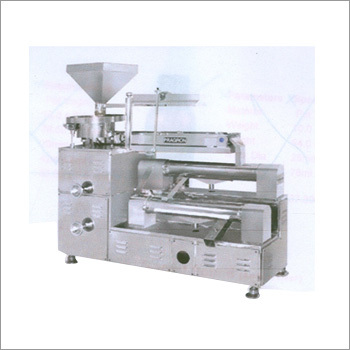

Capsules Polishing Machine

Capsules Polishing Machine
Capsules Polishing Machine
Product Code : 12
Brand Name : ALLIED PACKAGING TECHNOLOGIES
Product Description

Banking on our hi-tech manufacturing facilities, we are affianced in providing our clients superior quality Capsules Polishing Machine. The offered machine is fabricated with high precision to meet the set market standards by our deft professionals with the utilization of optimum grade stainless steel and ultra-modern technology. Equipped with a hopper, vibrator and a drug powder collection, the provided machine inspects the capsules and remove the defected ones. Also, the remaining capsules are thoroughly polishes, glossy and clean. We offer this Capsules Polishing Machine in different technical specifications as per the demands of our clients at affordable rates.

Features:

  • Noise free operation

  • High performance

  • Rugged design

  • Long service life

Capsules Polishing Machine

Feeding Section

This section consists of stainless Steel Hopper, a Stainless Steel Vibrator and a Stainless Steel Drug Powder Collection. Due to vibration as the capsules pass through the vibrator some amount of drug powder gets collected in the Stainless Steel collector.


Inspection Section

This section consists of food grade conveyor belt with variable speed drive and lighting from above to inspect the capsules. The capsules move on the conveyor belt while moving they revolve around the axis due to the angular guides. The defective capsules can be sorted out by the operator through visual inspection. The defective capsules sorted can be removed manually by puckers or by hand.


Polishing Section

This section consists of two Stainless Steel chambers fitted with a filter cloth; a revolving variable speed spiral nylon brush, stainless steel powder collector and vacuum dust collector. The capsules travel from one end of the brush to the other end. During this travel they are subjected to roll in between the Nylon bristles and sucked by the Dust Collector (Since the capsules are polished twice i.e. in two chambers the powder settled at the edge of the capsules also get removed). The capsules coming out of the chute are thoroughly polished, glossy and clean.
